nest shelf

sketch / image
  • 2015.09
for London Design Festival 2015

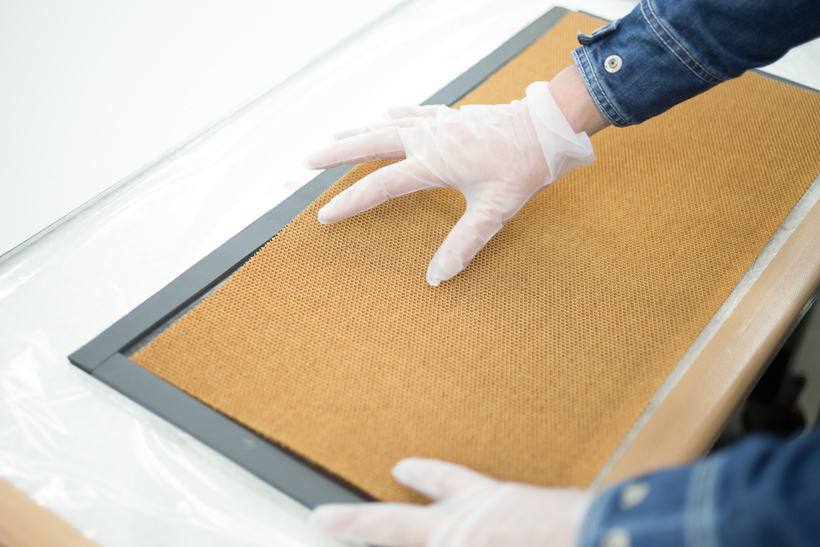

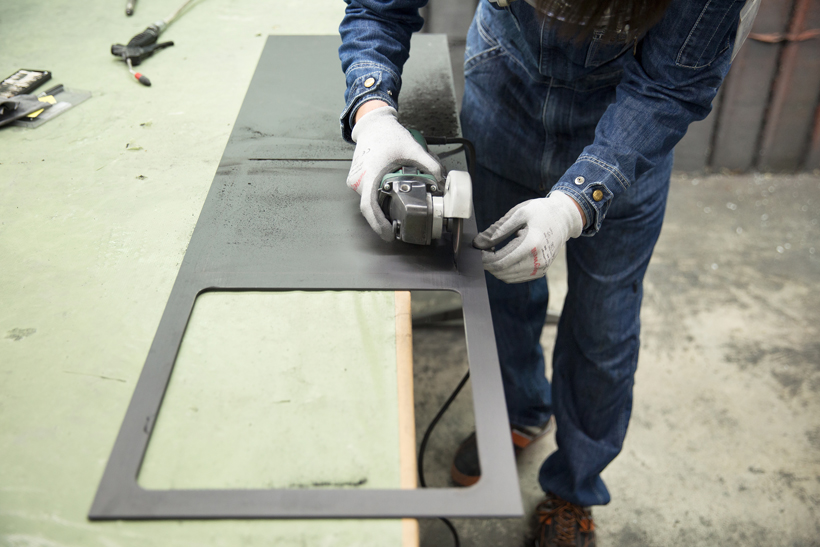

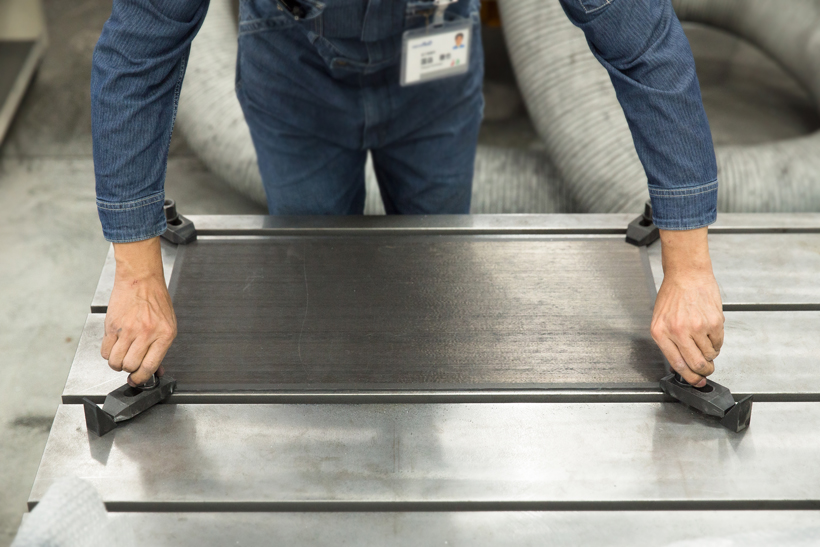

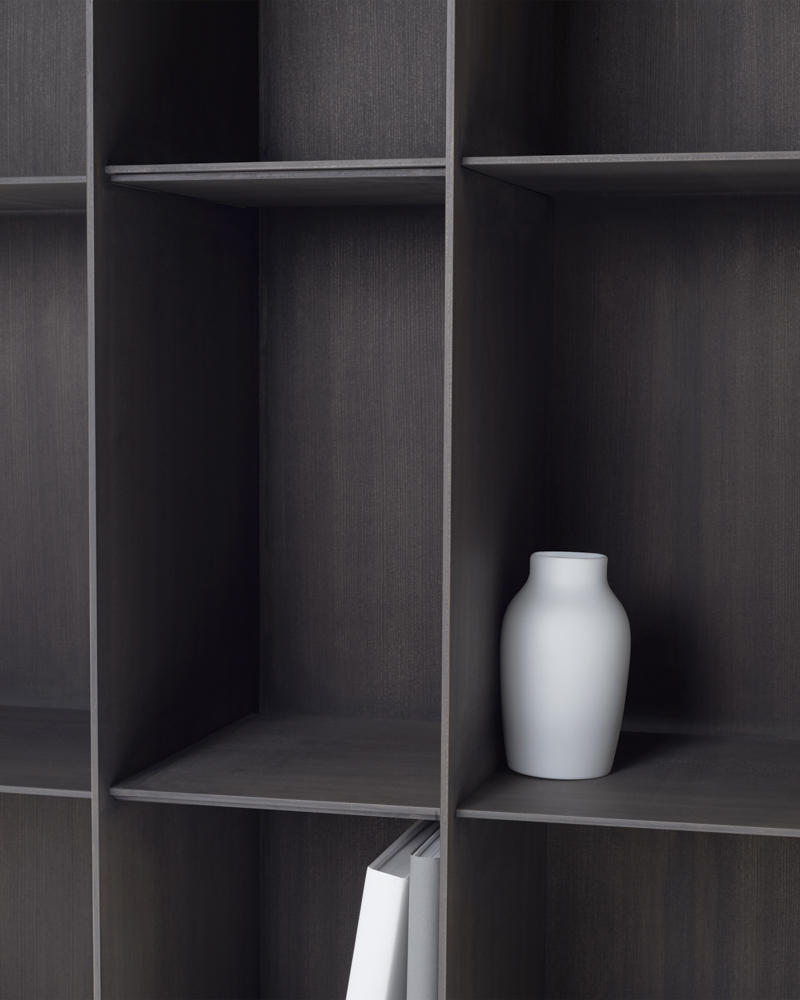

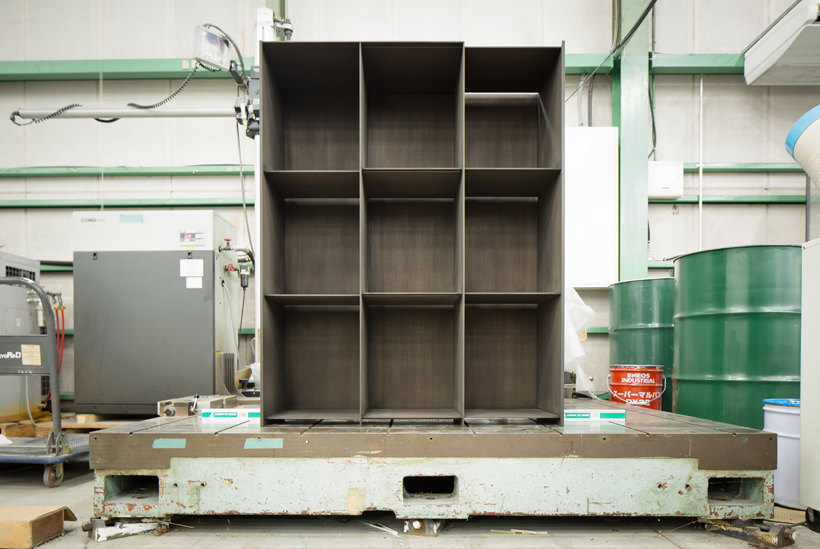

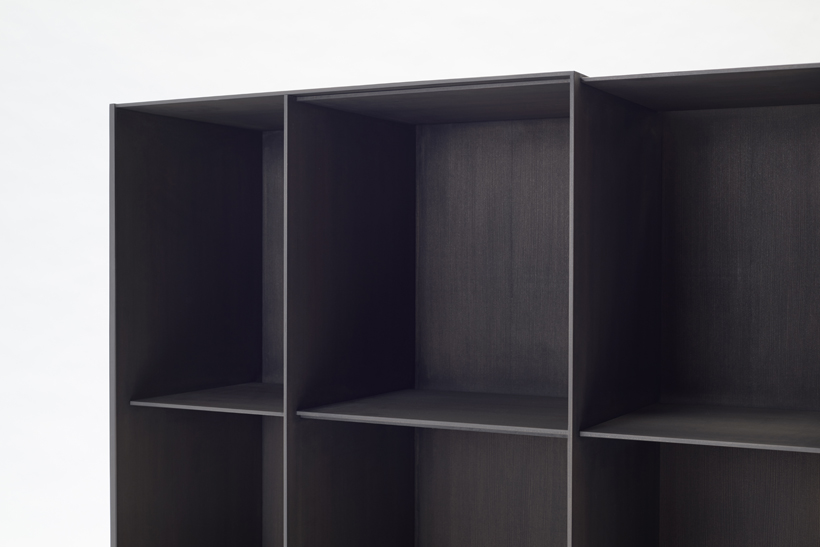

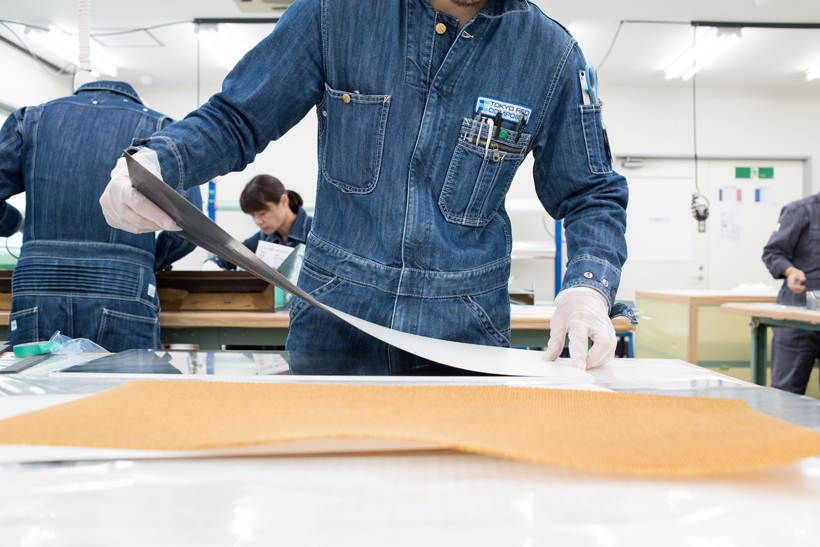

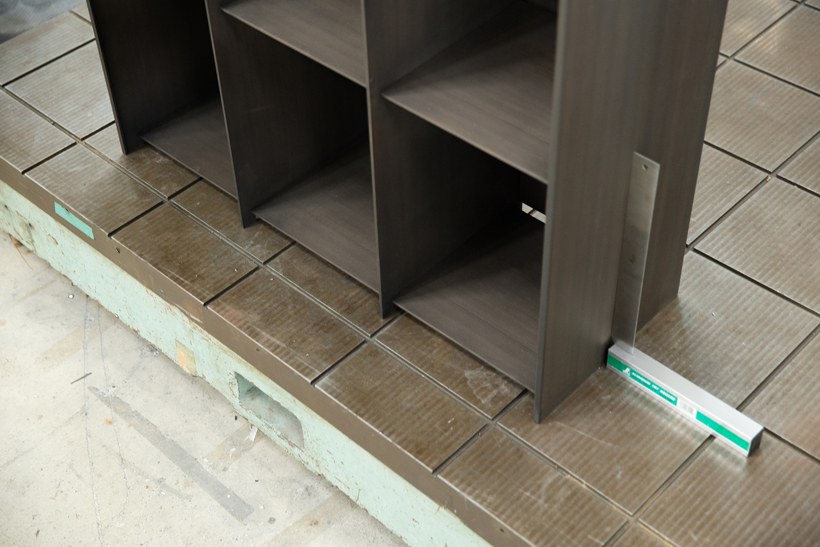

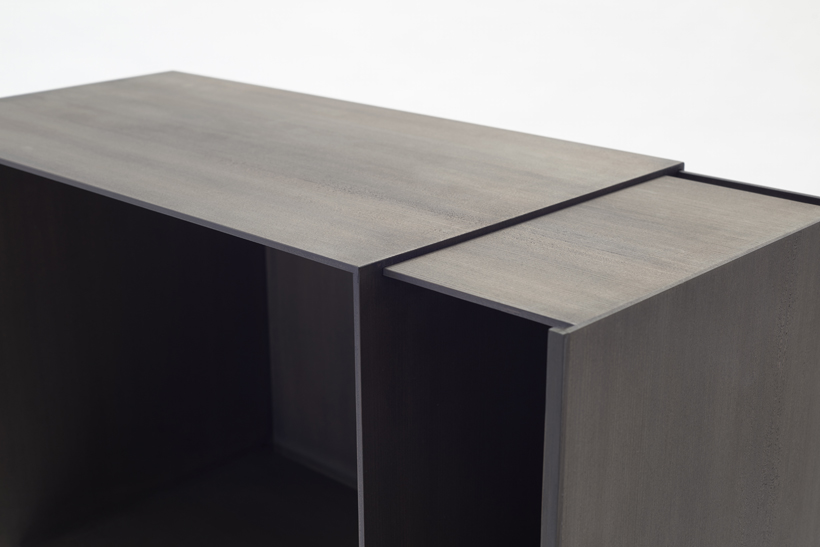

A shelf that from within a second shelf of the same size seemingly grows outward. Vertical sections are made from 3.7 mm thick carbon fibre, while the 3.7 mm thick horizontal sections consist of aramid fibre-made honeycomb material sandwiched between carbon fibre. Both sections are coated with a larch veneer, resulting in a 4.8 mm thick shelving hidden within the 9.6 mm thick outer shelving. The 650 mm width of the shelf’s fully-collapsed state doubles to 1300mm when the shelf is fully extended outward, allowing the user the flexibility to choose a width appropriate for the space available. Extending the shelf halfway produces a grid shelf-style layout with rows of square shelves.

nest_shelf_sketchnest_shelf01_akihiro_yoshida nest_shelf02_akihiro_yoshida nest_shelf03_akihiro_yoshida nest_shelf04_akihiro_yoshida nest_shelf05_akihiro_yoshida nest_shelf06_akihiro_yoshida nest_shelf07_akihiro_yoshida nest_shelf08_akihiro_yoshida nest_shelf09_akihiro_yoshida nest_shelf10_akihiro_yoshida

nest_shelf16_akihiro_yoshida nest_shelf17_akihiro_yoshida nest_shelf18_akihiro_yoshida nest_shelf19_takumi_ota nest_shelf20_takumi_ota nest_shelf21_takumi_ota nest_shelf22_takumi_ota nest_shelf23_takumi_ota nest_shelf24_takumi_ota nest_shelf25_takumi_ota nest_shelf26_takumi_ota

Collaborator : syk
Photographer : Akihiro Yoshida (1-18), Takumi Ota(19-26)
